Test Message Programming
1. Press the [MODE] button to set the operating mode to CW.
2. Be sure that Break-in is "Off" by pressing the [BK-IN] button, if necessary.

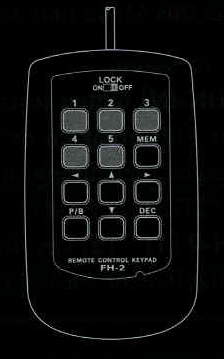

3. Press the FH-2 [MEM] key. A blinking "REC" icon will appear in the display.
4. Press an FH-2 [1] ~ [5] key to select the desired CW Memory Register into wish you wish to program the text, the blinking "REC" icon will disppear.
5. Use the FH-2 [◄] and [►] keys to set the cursor position and use the FH-2's [▲] and [▼] keys to choose the letter/number to be programmed in each slot of the memory. In the case of the second example on the previous page the "#" character designates the slot where the Contest Number will appear.
ADVICE:
You may also use the Main Tuning Dial knob and the [VFO-B/CLAR] knobs to program the message characters.
Checking the CW Memory Contents
6. When the message is complete, add the "}" character at the end to signify the termination of the message.
7. Press the and hold in the FH-2 [MEM] key for one second to exit, once all characters (including "}") have been programmed.
Checking the CW Memory Contents
1. Be sure that Break-in is still turned "Off" by the [BK-IN] key.
2. Prsss the [MONI] button to engage the CW monitor.
3. Press an FH-2 [1] ~ [5] key, whichever memory you just recorded in. You will hear the ressults in the sidetone, but no RF energy will be transmitted.
On-The-Air CW Message Playback
1. Press the [BK-IN] button to enable transmission. Either Full-break-in or Semi-break-in will be engaged, depending on the setting of Menu item "063 CW BK-IN".
2. Press an FH-2 [1] ~ [5] key, depending on which CW Memory Register message you wish to transmitt. The programmed message will be transmitted on the air.
